1 Beyond™ Wrangler and Mac Wrangler Dude

Tapeless Workflow Transfer and DDR System.

Call For Pricing

Image description

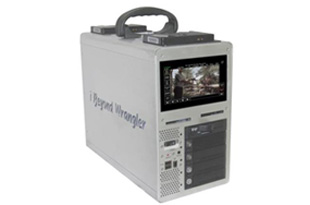

About the Wrangler Dude

Fast Ruggedized Portable DC or AC operated 1 Beyond Tapeless Workflow Transfer and DDR System. Includes: Rugged Brushed Aluminum case with 7" touch screen with 1 Beyond Wrangler automatic Tapeless Ingest and Dual - Triple Verify Software. Options include: Aluminum GoHDCart Bays and Disk Cartridges. Dual Panasonic P2 card readers, Sony SxS card Readers, RED (and other) CF card to Express Card (SxS) Adaptors, eSATA for RED and other Drives and FireWire. Featuring a touchscreen interface, dual Anton-Bauer or V-Lock mounts for battery-powered operation and up to 8-hours of continuous usage with either the standard dual GoHDCarts or various combinations including the optional High Performance RAID Protected internal disk array or Dual 256GB Solid State hard drives.

Image description

1 Beyond Wrangler Dude Specifications

  • Ergonomic Design
  • Ultra-tough rounded brushed aluminum alloy chassis designed by 1 Beyond
  • Built-in 7” High Resolution Touch Screen
  • Quite <30DB Sound for on set use
  • Portable flexibility includes Dual selectable DC Power inputs and AC option:
  1. Portable Dual Anton Bauer compatible Gold-Mount or "V-Lock" battery system (14.4 V nominal)
  2. External DC power input from virtually any Vehicle ranging from 6 to 30 V
  3. AC to DC external power supply operates from 100 to 250 Volts AC 50-60 cycles
  • Weight 12.0 lbs. external power, 17 lbs. with 2 x 160Whr batteries for up to 8 hours recording
  • Only 12” H with Small Footprint 7” W x 15” D, Batteries mount on top to maintain small footprint.

1 Beyond Wranglers as DDR – 1 Beyond Wranglers can now be configured for Direct to Disk Recording (DDR) for virtually all mono and stereo video and still cameras. Real-time format generation includes:

(the list is very long – call for latest update)

  • Uncompressed DPX, QT, AVI, .mov, TGA, TIFF, more
  • Compressed: DNxHD, DVC-Pro, Cineform, AVC-Intra, H.264, JPeg2000, MXF, more
  • RAW: Silicon Imaging, ARRI, Red, CineForm RAW, more

Turnkey - Backup system Image:

  • All Wrangler systems come loaded and tested turnkey.
  • In addition each system comes with a fully licensed system backup software package and a restore image as shipped. Full 1 year warranty parts and labor - return to 1 Beyond on original defects on 1 Beyond system. Parts not manufactured by 1 Beyond e.g. I/O cards are covered under the respective manufacturer's warranty.
Image description

1 Beyond Wrangler Dude

Image description
Image description

Additional Features and Options for all 1 Beyond Wrangler systems:
Automated Data Off-loading and Verification:

  • Optional P2, SxS, CF and SD (and more) card readers, eSATA and Firewire
  • DVI output for additional HD monitor or HD projector
  • Completely self-contained, Ruggedized, Portable systems w/ Roll-about case for easy local travel or optional rugged travel case for airline and shipping.
  • 1 Beyond GoHDCarts are each one Hot-Swappable disk cartridges 750GB to 1TB HDD, cast aluminum housing with rubber shock absorbers inside, and GoHDMags are 2 drives each from 1TB to 2TB. Either can be SSD at smaller capacity with higher performance and extremely rugged. All can be setup with RAID Protection.

Additional 1 Beyond Wrangler Options include:

  • Editing: Certified on Red CineX, Avid Media Composer, MoJo DX, Adobe CSx suite, Matrox, AJA, Blackmagic, Grass Valley and others
  • HD-SDI, HDMI, DVI and Component output for professional HD Video monitoring
  • Additional Battery Chargers and 1 Beyond industry compatible Gold Mount or V-Lock Intelligent Batteries with LCD readout of "Time to go and Percent used graph"

 1 Beyond removable storage is Designed for:

  • Unlimited capacity, resilient to rough courier and crew handling
  • Easy, instant data movement to any 1 Beyond tapeless workflow or customer device
  • Possible final shelf archive - 10x smaller and lighter than tape at a lower cost per GB
  • Security encryption for shipping/handling - optional 256 bit encryption with HW key
  • 1 Beyond Wrangler Reader Compatible - A Full line of GoHDCart and GoHDMag Readers for Mac or PC, any size including Desktop, Portable, Rack mount and any Host connection or bus is available.
Image description

For Purchasing and Additional Information - Call 1 Beyond at 617-591-2200
